Differences Between 7kW, 11kW, and 22kW EV Chargers: Charging Speed and Compatibility Explained
Charging Speed Comparison

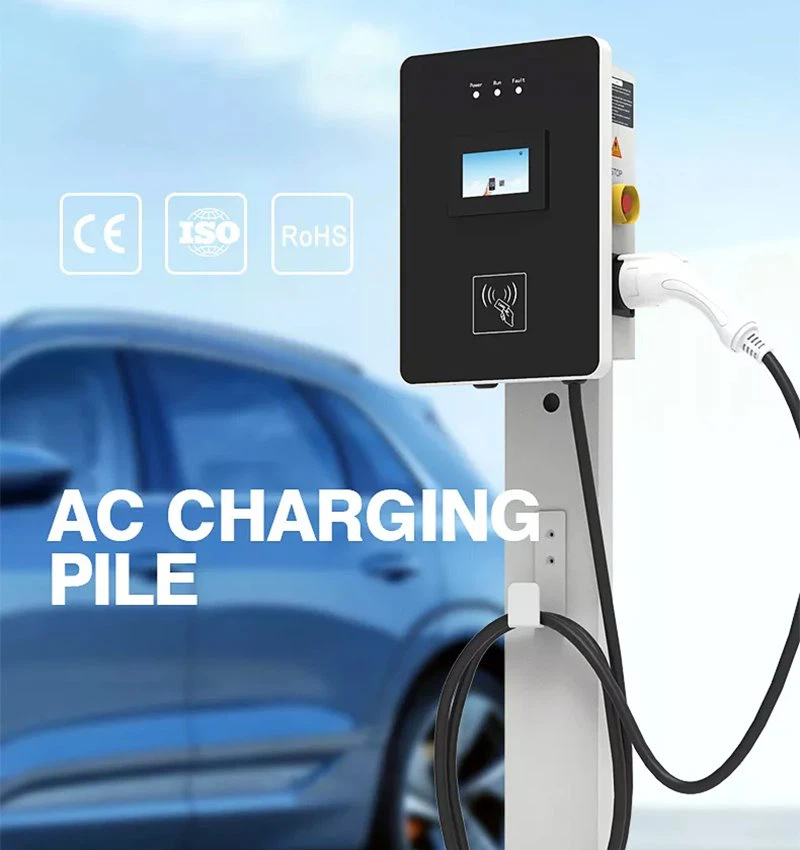

7kW EV Charger
A 7kW EV charger delivers approximately 7 kWh of energy per hour. For example, a Tesla Model 3 Standard Range with a 55 kWh battery typically requires around 8 hours for a full charge. This option is well suited for daily household use and works best for users who prefer slow, steady charging overnight.

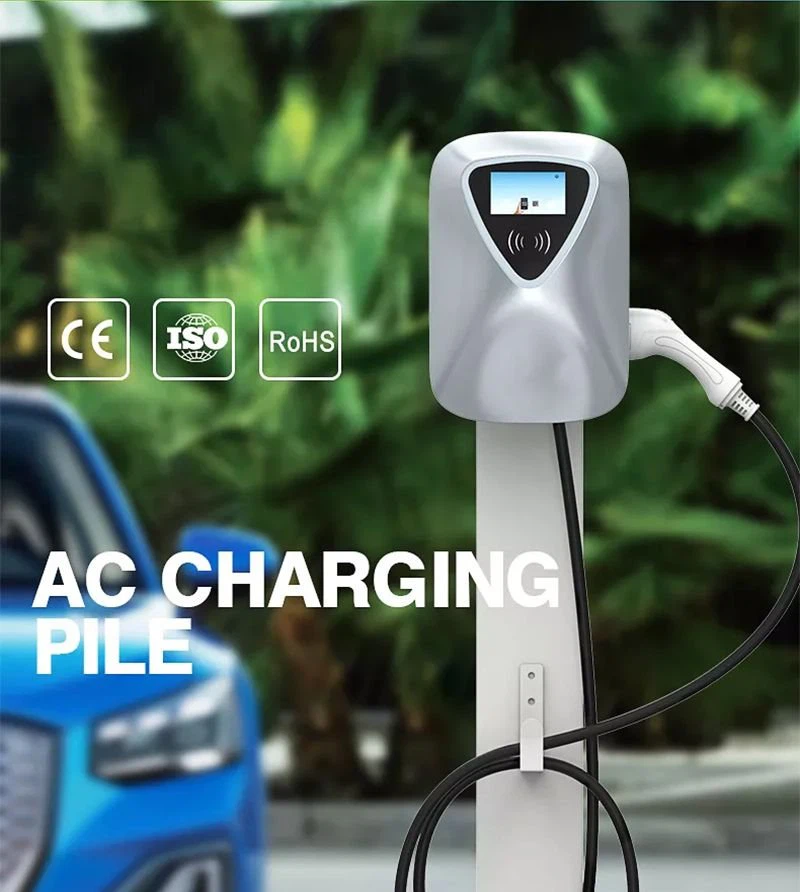

11kW EV Charger
An 11kW EV charger supplies about 11 kWh per hour. Under ideal conditions, the Tesla Model 3 can be fully charged in approximately 5 hours. While charging speed is noticeably faster, compatibility may be more limited, as some vehicles can only accept up to 3.5kW due to onboard charger constraints.

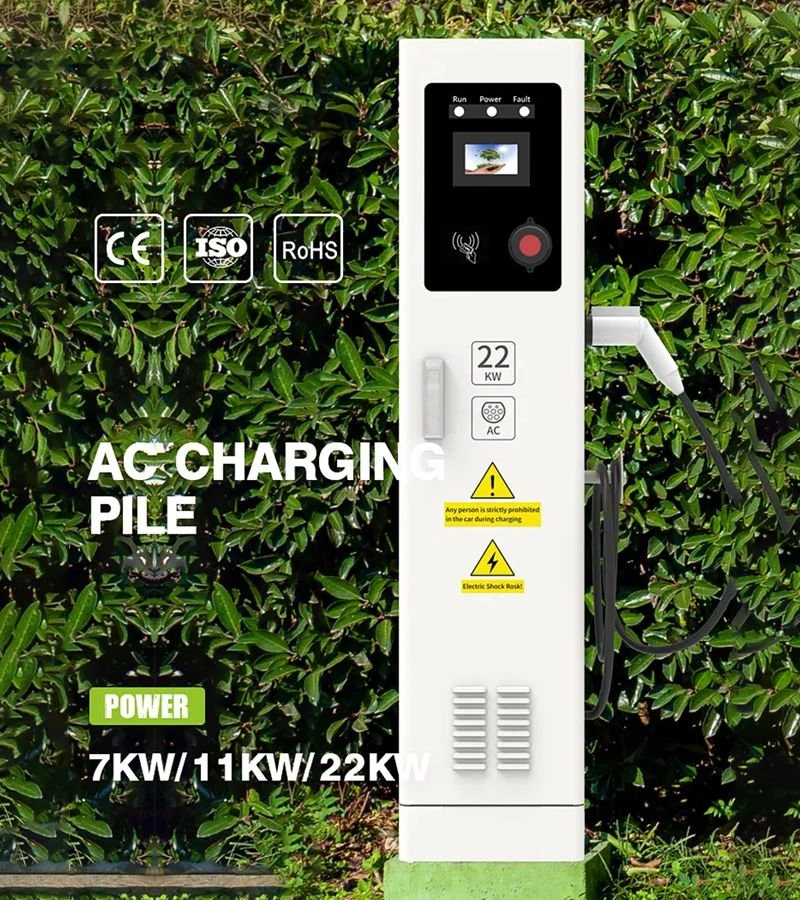

22kW EV Charger
A 22kW EV charger provides up to 22 kWh per hour. In this case, a Tesla Model 3 can reach a full charge in roughly 3 hours. This power level offers strong compatibility with GB-standard new energy vehicles and delivers significantly reduced charging time.
Vehicle Compatibility Guide
7kW EV Charger: Compatible with most GB-standard new energy vehicles and remains a popular choice for residential charging.
11kW EV Charger: Supported by select higher-end vehicle models; overall compatibility is more limited.
22kW EV Charger: Works with a wide range of vehicles and offers the strongest overall compatibility among the three options.
Installation Requirements Overview
7kW EV Charger: Operates on 220V single-phase power, making installation relatively simple and suitable for most residential settings.
11kW and 22kW EV Chargers: Require a 380V three-phase electrical supply, which may not be available in older residential buildings or communities.
Cable Specification Considerations
7kW EV Charger: Requires cables rated at 3×6mm² or thicker to ensure stable and safe operation.
11kW EV Charger: Requires 3×10mm² or thicker cables due to higher current demands.
22kW EV Charger: Requires 3×16mm² or thicker cables, as higher power output places greater demands on wiring standards.
Summary
The 7kW EV charger is well suited for daily household charging and users with flexible charging schedules. The 11kW and 22kW models are better options for those seeking faster charging speeds. However, installation conditions, electrical capacity, and overall costs should always be carefully evaluated before making a final decision.
