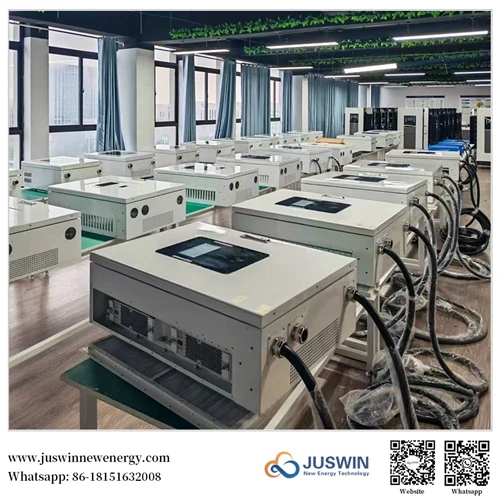

DC Wallbox EV Charger (20kW/30kW/40kW): Compact Wall-Mounted DC Fast Charging for Commercial Scenarios



With the rapid growth of global electric vehicle adoption, commercial properties, parking operators and fleet managers are increasingly demanding space-saving, reliable and cost-effective DC fast charging solutions. Our wall-mounted DC wallbox EV charger series is designed to meet this need, delivering stable fast charging performance in a compact footprint while supporting mainstream charging standards and smart operation protocols.



Product Line Overview



Our DC wallbox EV charger comes in three power ratings: 20kW, 30kW and 40kW, covering entry-level commercial to high-demand public charging scenarios. The wall-mounted installation design greatly reduces floor space occupation, making it ideal for both indoor garages and outdoor parking areas.





Core Technical Specifications



Parameter	Details
Output Power	20kW / 30kW / 40kW
Output Voltage	200-750V (200-1000V optional)
Output Current	60A / 100A / 133A
Input	260-475V, 3P+N+PE, 50/60Hz
Peak Efficiency	≥95% at rated voltage
Protection Level	IP54
Operating Temperature	-20℃ ~ +50℃
Display	5-inch display / digital tube
Charging Connectors	CCS, CHAdeMO, GB/T
Charging Protocols	GBT27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6 (JSON), ISO 15118
Cable Length	Customizable for both input and charging gun cable



Key Product Advantages



1. Wide Voltage Compatibility for All Mainstream EVs



With an output voltage range of 200-750V (1000V optional), the charger works with both 400V platform passenger cars and 800V high-voltage models. It supports three mainstream interface standards - CCS, CHAdeMO and GB/T - covering almost all EV models on the market and eliminating "vehicle-pile mismatch" for public charging scenarios.



2. High Efficiency for Lower Operating Costs



With a peak efficiency of up to 95% and power factor higher than 0.99, the charger minimizes energy loss during power conversion, effectively reducing electricity costs for operators. It is especially suitable for high-frequency commercial charging scenarios, delivering long-term operational savings.



3. Reliable Performance for Outdoor Deployment



With an IP54 ingress protection rating, the wallbox operates stably in outdoor environments exposed to wind, rain and dust. Its -20℃ to +50℃ operating temperature range adapts to most climate regions worldwide, maintaining consistent charging performance even in extreme summer heat or cold winter conditions.



4. Smart Operation & Remote Management



Fully compliant with the OCPP 1.6 protocol, the charger can be seamlessly connected to mainstream charging operation platforms, supporting remote start/stop, charging data monitoring and fault alarms. It is also equipped with a 5-inch display for on-site status viewing, convenient for both operators and end users.





Typical Application Scenarios



Commercial parking lots & shopping malls: fast charging services for customer vehicles

Hotels & office buildings: charging support for guests and employees

Fleet depots & logistics centers: fast energy replenishment for commercial fleets

Gas stations & highway rest areas: public fast charging network expansion

Residential communities: shared DC fast charging for residents



Customization Support



We provide flexible customization services to match project requirements, including adjustable input and charging cable lengths, connector standard selection, brand OEM labeling, and function upgrades such as load balancing. We also offer full technical support for certification and on-site installation guidance.



Summary



Our 20kW/30kW/40kW DC wallbox EV charger combines compact design, reliable performance and smart operation capability, making it a cost-effective choice for commercial and public charging infrastructure deployment. Whether upgrading existing parking facilities or building new charging networks, this series can meet diversified charging needs.
