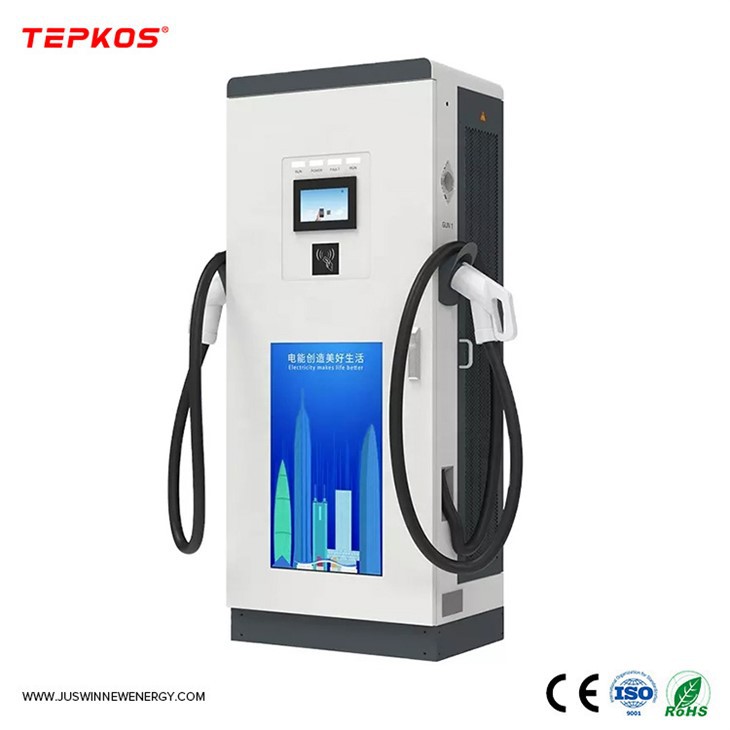

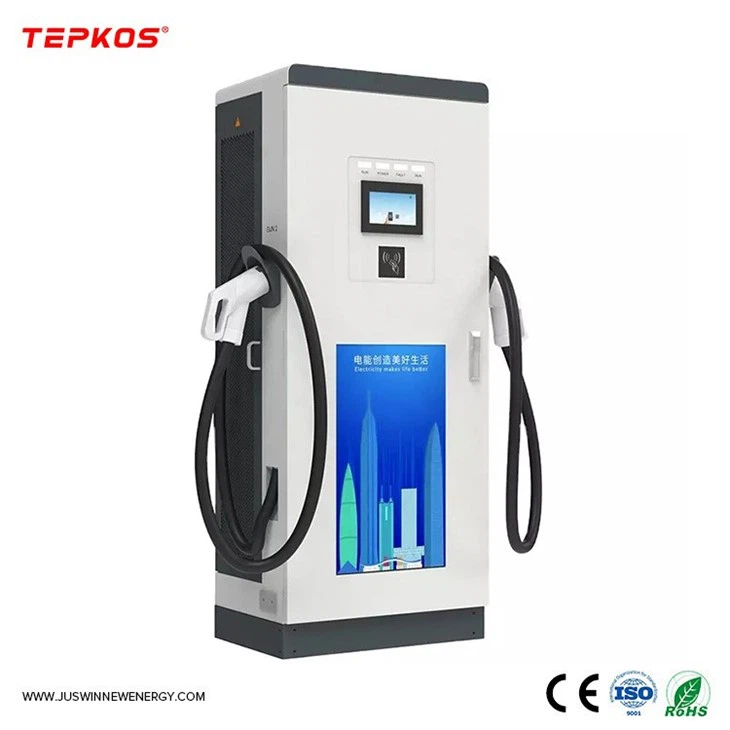

Fast Electric Charging Stations
Our fast electric charging stations are equipped with the latest technology. It can offer a charging speed of up to 350 kW, which can deliver up to 400 km of driving range in just 15-20 minutes. It is designed to be compatible with different models of electric vehicles. This charging station comes with LCD screens that show the current, voltage as well as other charging information.
Product Introduction
Product Instruction
Our fast electric charging stations are designed to provide quick and efficient electric charging solutions for electric vehicles, reducing charging time, and increasing the range of the vehicles.
Product Parameters
|
NO |
Parameters |
Fast Electric Charging Stations | ||
|
General Requirements |
||||
|
1 |
EV Charger Type |
DC |
||
|
2 |
Charger Capacity |
30KW |
40KW |
|
|
3 |
Product Model NO. |
ENC-DCL030A ANSI-DCL030A JIS-DCL030A |
ENC-DCL040A/B ANSI-DCL040A/B JIS-DCL040A/B |
|
|
4 |
Mounting |
Ground-Mounted |
||
|
Input Requirements |
||||
|
5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
||
|
6 |
Nominal Input Voltage |
AC380V±15% |
||
|
7 |
Input Frequency |
45-65Hz |
||
|
Environmental Requirements |
||||
|
8 |
Ambient Temperature |
-25 to 55°C |
||
|
9 |
Ambient Humidity |
5 to 95% |
||
|
10 |
Storage Temperature |
-40 to 70°C |
||
|
Mechanical Requirements |
||||
|
11 |
IP Ratings |
IP 54 |
||
|
12 |
Cooling |
Air-cooled |
||
|
Output Requirements |
||||
|
13 |
Number of Outputs |
1 |
1 or 2 |
|
|
14 |
Type of Each Output |
DC200-750V DC150-500V(JIS) |
||
|
15 |
Single Output Max. Current |
125 Amp |
150 Amp |
|
|
16 |
Power Factor |
≥0.99(50% load above) |
||
|
User Interface & Display Requirements |
||||
|
17 |
Display & Touch-Screen |
7 InchesTouch Screen |
||
|
18 |
User Authentication |
Mobile Application or User Interface / QR Code/RFID Card /Password Login |
||
|
19 |
Metering Information |
Consumption Units |
||
|
Communication Requirements |
||||
|
20 |
Communication between EVSE and Central Server |
OCPP 1.6J Protocol (Optional) |
||
|
21 |
Interface between Charger and CMS |
Ethernet/3G/4G/WIFI (Optional) |
||
|
Protection & Safety Requirements |
||||
|
22 |
Executive Standard |
IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc. |
||
|
23 |
Safety Parameters |
Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. |
||
Product Details
Our fast electric charging stations are equipped with the latest technology. It can offer a charging speed of up to 350 kW, which can deliver up to 400 km of driving range in just 15-20 minutes. It is designed to be compatible with different models of electric vehicles. This charging station comes with LCD screens that show the current, voltage as well as other charging information.
Safety Features
Our fast electric charging stations are equipped with advanced safety features that ensure the safety of both the driver and the vehicle.
Product Dimension

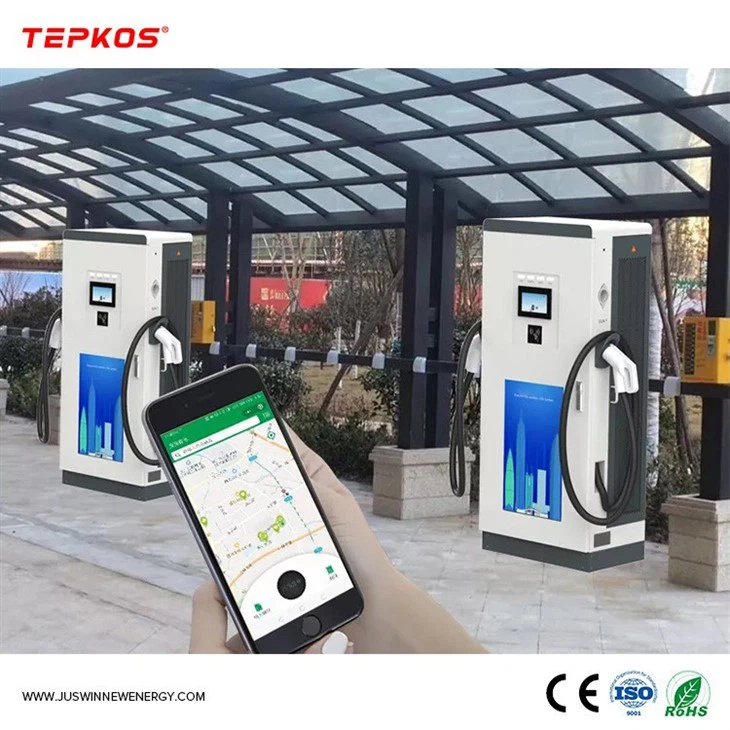

Customer Photos
Our fast electric charging stations can be used in a wide range of applications including public charging stations, commercial charging stations, and private charging stations. They are ideal for parking lots, shopping malls, airports, and other public spaces where EV owners require quick and efficient charging solutions. They are also perfect for private residences and commercial buildings that have EV owners among their employees or residents.
Our Certificates
Packing and Delivery
