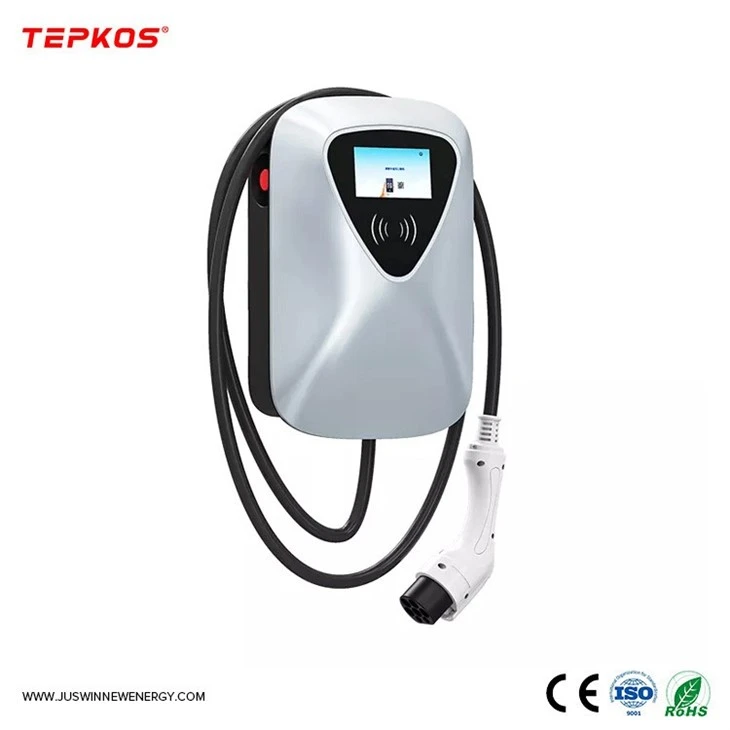

3.5 Kw Ac Fast Charging Wallbox

The 3.5 kW ac fast charging wallbox is a highly advanced and efficient charging solution for electric vehicles. It is designed to provide fast and reliable charging service for EV owners. The charger is easy to install and comes equipped with a range of advanced features to ensure maximum convenience and functionality.

Our 3.5 kW ac fast charging wallbox is a highly advanced and efficient charging solution for electric vehicles. It offers a range of advanced features and safety standards, as well as versatile charging and payment options, making it an ideal solution for public and private settings. With its fast charging speed and easy-to-use interface, the charger is a practical and effective solution for EV owners and fleet operators.

NO	Parameters	3.5 kw ac fast charging wallbox
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A-S ANSI-ACB/L003P5A-S	ENC-ACB/L007A-S ANSI-ACB/L007A-S	ENC-ACB/L011A-S ANSI-ACB/L011A-S	ENC-ACB/L022A-S
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

Our 3.5 kW ac fast charging wallbox is a wall-mounted charging station that offers a charging power output of up to 3.5 kW. The charging station is designed to work with a wide range of electric vehicles, making it a versatile and practical charging solution for public and private settings.

The charger features a sleek and modern design, with a compact size and lightweight construction for easy installation and maintenance. The charger is equipped with an LED display that provides real-time information on charging status, power output, and other important details for users.

Our 3.5 kW ac fast charging wallbox comes equipped with a range of advanced features to enhance its performance and usability. Some of the key features of the charger include:

1. Versatile Charging Options - The charger is designed to work with a wide range of electric vehicles, making it a practical and flexible charging solution for public and private settings.

2. Fast Charging Speed - The charger offers a charging power output of up to 3.5 kW, ensuring fast and efficient charging for EV owners

3. Easy to Use and Install - The charger is designed to be easy to use and install, with a user-friendly interface and lightweight construction.

4. Advanced Safety Features - The charger comes equipped with advanced safety features to protect both the EV and the charger from damage or malfunction.

5. Smart Management System - The charger features a smart management system that allows for remote monitoring, scheduling, and reporting for maximum efficiency and convenience.

Our 3.5 kW ac fast charging wallbox is designed and manufactured to the highest safety and quality standards, ensuring maximum safety and reliability for users. The charger is certified to meet all relevant safety standards, including UL, CE, and RoHS certifications.

Our 3.5 kW ac fast charging wallbox supports a range of charging and payment options for maximum convenience and flexibility. The charger can be used with a range of payment systems, including RFID cards, mobile apps, and credit/debit cards. EV owners can also choose to pay for charging services through a subscription or pay-as-you-go model.

Our 3.5 kW ac fast charging wallbox is ideal for a wide range of application scenarios, including:

1. Public Charging Stations - The charger is designed to provide fast and reliable charging service for public charging stations, such as parking lots, shopping centers, and roadside stations.

2. Private Charging Stations - The charger is also an ideal solution for private charging stations, such as residential or commercial buildings, where EV owners need fast and convenient charging service.

3. Fleet Charging Solutions - For fleet owners with a large number of electric vehicles, the 3.5kW AC Fast Charging Wallbox can provide a cost-effective and efficient charging solution, allowing fleet vehicles to be charged quickly and conveniently.
