7kw Wallbox

Do you often encounter these problems: plugging in your EV for slow charging before bed, only to find it has only reached 80% by morning? Want to install a charging station in your residential area, but the circuit modification costs thousands of dollars? Charging stations in corporate office areas often cause complaints about "incompatible connectors"?

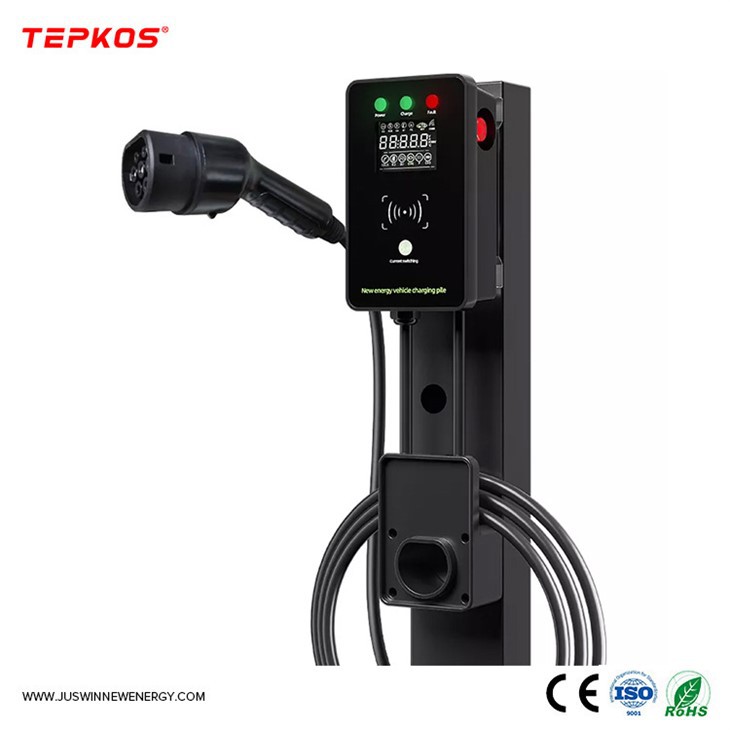

This 7kW wallbox solves these issues. It is a wall-mounted AC charging station designed specifically for single-phase, 3-wire systems, with connector heads that match the necessary interface. The 7kW power output balances fast charging performance with grid compatibility, making "plug and charge" effortless in your garage, residential area, or corporate parking lot.



7kw Wallbox
Charging standard	Type2(European Standard)	Rated Voltage	80V-265V
Rated current	32A	Rated Power	7KW
Power cord length	5m (customizable length)	Product Weight	4KG
Operating temperature	-40℃ ~ +150℃	Working temperature	-40℃ ~ +80℃
Protection grade	Charging Gun Head: IP67; Control Box: IP54
Product size	Connector: 240mm*51mm*98mm Control box: 225mm*75mm*67mm
Protection function	Anti-pressure protection;Overload protection;Undervoltage protection; Lightning protection;Control box overheating protection;Electrostatic protection; Over-voltage protection;Waterproof and dustproof;Plug overheating protection;Overcurrent protection;Double leakage protection;Flame retardant protection; Double ring protection.

JUSWIN 7kW wallbox is a wall-mounted AC charging station compatible with single-phase, 3-wire systems. Its core features are designed to meet the true needs of everyday users:



The power output is fixed at 7kW, considered the "golden fast-charging level" for home and light commercial use. It is twice as fast as 3.5kW slow charging and does not overload home or residential power grids like high-power chargers can.



It supports "connector selection as needed": whether it's Type 2, GBT, or other mainstream interfaces, we precisely mold the connector head according to the interface data, requiring no additional adapters-simply plug in and charge.



The wall-mounted design occupies only 0.06㎡ of space, and the 5-meter weather-resistant cable means you don't need to park directly next to the wall. Installation is easy, even in small garages.





Direct single-phase installation - no circuit modification, saving costs



Most homes and residential areas use single-phase power. This 7kW wallbox ev charger is designed specifically for single-phase, 3-wire systems and can be connected directly to a 16A air conditioner socket (or a community's public single-phase interface), eliminating the need for additional three-phase wiring or distribution box modifications. A standard electrician can complete installation in about one hour.



For an EV with a 60kWh battery, charging from 20% to 80% at 7kW takes approximately 5 hours. Plug it in before bed, and it will be fully charged by morning.

You can also take advantage of off-peak electricity pricing (as low as 0.3 yuan/kWh in some regions), cutting charging costs to half of those at public stations.





Stable charging and smart system integration



JUSWIN 7kW wallbox ev charger includes a built-in smart module that integrates with smart home systems and smart grids. You can set "automatic charging during off-peak hours", allowing the charger to start during the lowest price period. It can also monitor the battery while charging and set "stop charging at 80%" to prevent overcharging and protect battery life.



For community property management, multiple 7kW wallboxes can connect to a management platform for real-time monitoring, eliminating the need for manual checks.





Scenarios where the 7kW wallbox is ideal



1. Home Garage

Install this 7kW wallbox ev charger on the garage wall and charge during off-peak hours at night, saving over 50% compared to public charging. No more detours to find fast chargers-just charge as needed for your daily commute.



2. Community Public Parking Lot

Property managers can choose 7kW wallboxes with connector types matching common EV models in the community. They can connect directly to the public single-phase supply without circuit modifications. Residents can start charging via RFID card, helping solve the "charging pile competition" problem and improving community convenience.



3. Corporate Office Area

Installed in employee parking lots, staff can plug in and charge during working hours and drive home fully charged. The 7kW power level does not impose excessive electrical load on the company and saves employees time spent waiting at public chargers.



As a manufacturer specializing in EV charging equipment, we have optimized this 7kW wallbox EV charger in several ways:



Maximum connector durability: The connector housing uses flame-retardant ABS and anti-UV materials, maintaining flexibility in environments from -30°C to 60°C. Even in northern winters, cables will not become stiff or difficult to plug and unplug.



Stable power output despite grid fluctuations: To address voltage fluctuation issues in some areas, our 7kW wallbox EV charger includes a built-in voltage stabilization module, providing steady 7kW output within an AC 220V ±15% range, preventing charging slowdown caused by low voltage.



Strict quality control: Each 7kW wallbox undergoes a 24-hour full-power charge-and-discharge test before leaving the factory, simulating continuous home charging conditions to ensure there are no overheating issues or operational failures during long-term use.



JUSWIN 7kW wallbox EV charger fully complies with major global charging safety standards:

It includes triple active protection against overcurrent, overvoltage, and short circuits. If an abnormality occurs, power is cut off within 0.1 seconds, and the device alarm is activated.
