Wallbox Public Charge

Wallbox public charge is a premium electric vehicle (EV) charging station designed for public use. It combines top-notch engineering with modern design and user-friendly features. Our wallbox public charge aims to provide a convenient, fast, and safe EV charging experience for drivers on the go.

Our wallbox public charge is a remarkable EV charging station that combines style, functionality, and safety. It offers fast charging, smart connectivity, and multiple charging and payment options. Our wallbox public charge is suitable for different public spaces and scenarios, making it an ideal solution for EV drivers on the go.

NO	Parameters	Wallbox Public Charge
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A-S ANSI-ACB/L003P5A-S	ENC-ACB/L007A-S ANSI-ACB/L007A-S	ENC-ACB/L011A-S ANSI-ACB/L011A-S	ENC-ACB/L022A-S
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

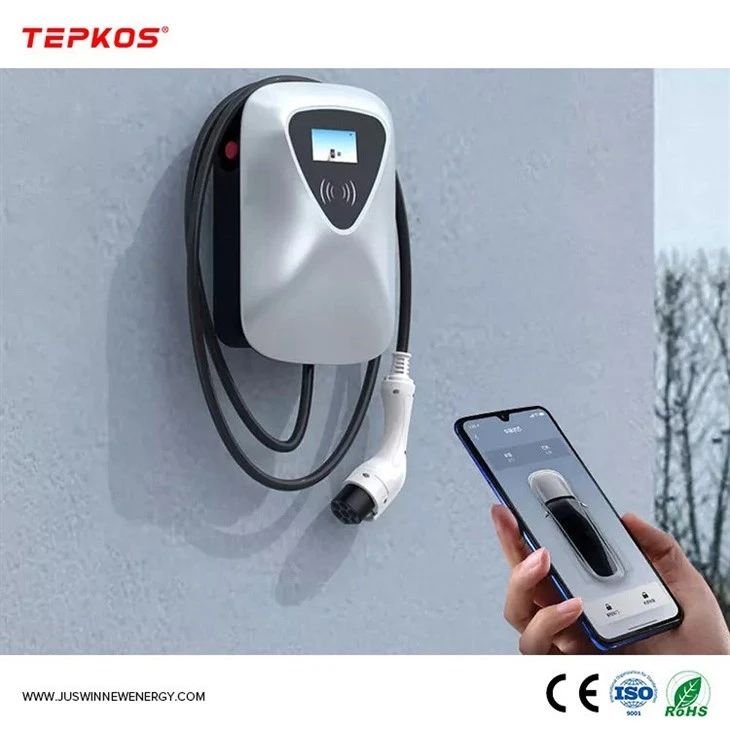

Our wallbox public charge comes in a sleek and compact design suitable for different public spaces. It is designed with a diagonal touch-screen interface that displays the charging status, time remaining, and power output. The station is also equipped with RFID technology to enable secure authentication of the user.

Our wallbox public charge offers several features that make it an outstanding EV charging station. Here are some notable features:

- Fast Charging: Our wallbox public charge allows for up to 20kW DC power output, enabling EV drivers to recharge their batteries in less time.

- Smart Connectivity: Our wallbox public charge integrates with the app, which allows users to monitor their charging history, receive notifications, and scheduling charging sessions remotely.

- Eco-Friendly: Our wallbox public charge is designed to minimize energy waste by automatically adjusting the power output according to the EV battery's charge level.

Our wallbox public charge complies with the highest safety standards to ensure that users and the environment are safe. It is built with internal protection against overvoltage, overcurrent, short-circuiting, and overheating. The station's cable is also equipped with locking mechanisms to prevent unauthorized access.

Our wallbox public charge supports several charging and payment methods, making it convenient for users. Here are some of the ways in which users can charge their EVs and make payments:

- RFID Cards: Users can access the charging station via an RFID card, which they can top up with credit through the app.

- Credit Cards: Users can also pay for charging sessions using their credit cards. The wallbox public charge accepts major credit cards such as Visa, MasterCard, and American Express.

Our wallbox public charge is suitable for different public spaces and scenarios. Here are some examples of where the charging station can be used:

- Parking Lots: Our wallbox public charge can be installed in public parking lots to enable drivers to recharge their EVs while they are parked.

- Gas Stations: Our wallbox public charge can be set up in gas stations to offer an alternative refueling option for EV drivers.

- Public Transport Hubs: Our wallbox public charge can be installed in public transport hubs such as train stations to cater to EV drivers who commute to work.
