Electric Car Wallbox Charger
JUSWIN electric car wallbox charger is a wall-mounted AC charging station designed for homes, communities, and light commercial use, supporting 7kW, 11kW, and 22kW outputs. No adapter required—charging plugs can be customized for your vehicle model (e.g., Tesla, BYD, Volkswagen, etc.). Equipped with a 4.3-inch touchscreen (showing real-time charging power, elapsed charge time, and estimated time to full charge), the IP55-rated charger protects against dust and low-pressure water jets (such as rain). Flexible installation allows it to be mounted on garage walls, residential charging poles, or office parking structures, saving floor space while providing safe, plug-and-play charging for electric vehicles.
Product Introduction
Home Electric Car Wallbox Charger: 7kW/11kW/22kW Wall-Mounted Fast Charging, Customizable Charger Head Compatible with All Vehicle Types
Charging at home feels too slow, and even an 8-hour overnight charge isn't enough? No fixed charging station in your neighborhood, so you're always queuing for a public one? Want to install fast charging at work but worried about the power supply? This electric car wallbox charger is designed to solve these pain points for home and light commercial use. It offers three power options-7kW, 11kW, and 22kW-with a customizable charger head compatible with all vehicle types. It features a 4.3-inch touchscreen for easy operation and durable IP55 protection. It supports single-phase power at 7kW/11kW and three-phase power at 22kW. Its space-saving wall-mounted design lets you charge your car conveniently at home, in the community, or at the office.
Product Parameters
| Name | Electric Car Wallbox Charger |
| Power | 7KW/11KW/22KW |
| Efficiency | ≥95% |
| Screen size | 4.3 Inches Touch Screen |
| Executive Standard | (IEC 61851/IEC 62196/SAEJ1772/GBT) Customized acceptable |
| Installation method | Wall-Mounted/Column Type |
Three power options to match your needs and budget
As a home-focused electric car wallbox charger, different power levels are available to perfectly suit daily use:
7kW Model: Ideal for rentals and older properties, it connects to a single-phase, three-wire system (compatible with a standard air conditioner outlet) without circuit modifications. A full charge takes 8–10 hours during off-peak times, cutting costs by half compared to public charging. Perfect for daily commutes (up to 50 km per day), with a gentle power output that won't stress your home grid.
11kW Model: The most popular choice for homes and residential communities. Also using a single-phase, three-wire system, it fully charges in 4–6 hours. Great for daytime charging-for example, a two-hour lunch break adds 80 km of range. It supports shared residential setups, balancing efficiency with manageable energy consumption.
22kW Model: Best for larger apartments and offices, it requires a three-phase, five-wire system and completes charging in 2–3 hours. Perfect for long-range needs (such as fast charging before a weekend trip). Businesses can install it to let employees top up during the day without relying on public stations.
Choose by power source-no complex circuit changes required
Worried about installation hassles? The wallbox charger was designed for flexibility:
7kW/11kW models: Connect directly to a single-phase, three-wire outlet at home or office (like a 16A AC outlet). An installer can complete wiring in about an hour, making it ideal for older homes or rentals-no wall breaking or rewiring required.
22kW model: For homes or businesses with three-phase power (such as villas or factories), connect directly to a five-wire system. This setup delivers ample power for multiple EVs or light commercial use, without additional grid upgrades.
4.3-inch screen + simple operation, easy for anyone to use
Worried about complicated controls? The 4.3-inch touchscreen clearly shows real-time data such as "Current power: 7kW, charging time: 2 hours, 1 hour remaining." Start/pause charging with a simple touch, or set "Nighttime Off-peak Charging" (e.g., automatic charging from 12:00 AM to 8:00 AM). No need to stay up late waiting-operation is so intuitive that even older users can master it instantly.
Customized plugs guarantee reliable charging for your car
No more worrying about incompatible plugs-this electric car wallbox charger supports custom charging plugs for each vehicle model. Each plug is precisely molded to the vehicle connector (Type 1/Type 2, etc.) and tested through 500 insertion/removal cycles to ensure a secure fit. The conductive copper sheet is made of high-purity material, keeping it cool and reliable during charging. Whether you drive a family sedan, SUV, or light commercial EV (like a commuter van), simply plug in and charge-no need to choose chargers by model.
IP55 protection + multiple safety features = 10 years of peace of mind
Safety is essential for home appliances. This wallbox charger includes:

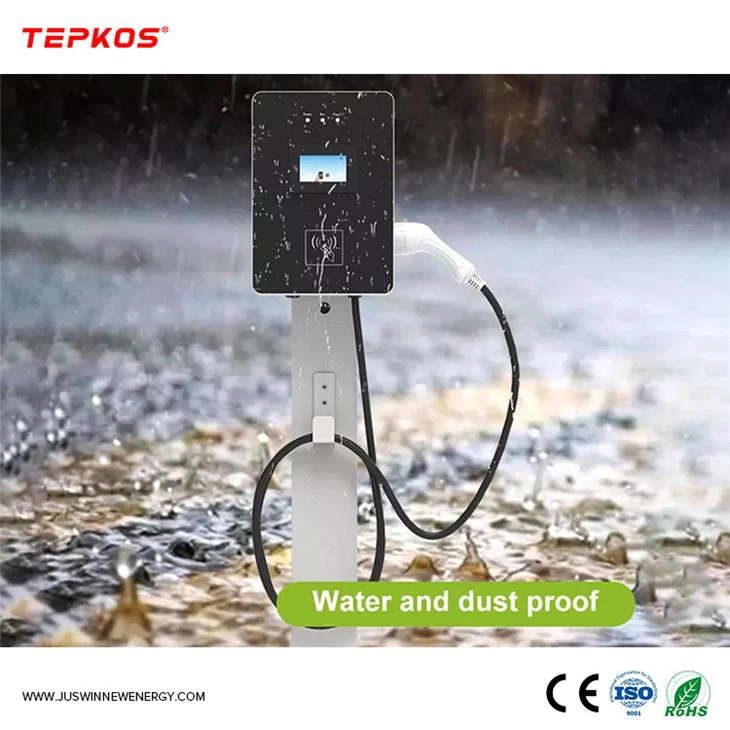

IP55 protection: Resists rain and dust when installed outdoors (e.g., on a garage wall).
Triple protection: Overcurrent (shuts off during abnormal current), overvoltage (stops fluctuations from damaging the battery), and overtemperature (reduces power if the plug overheats). Certified CE and RoHS compliant for added assurance.
Automatic power-off: Stops charging once the battery is full, preventing overcharging and extending battery life-even if you forget overnight.
Product Dimension

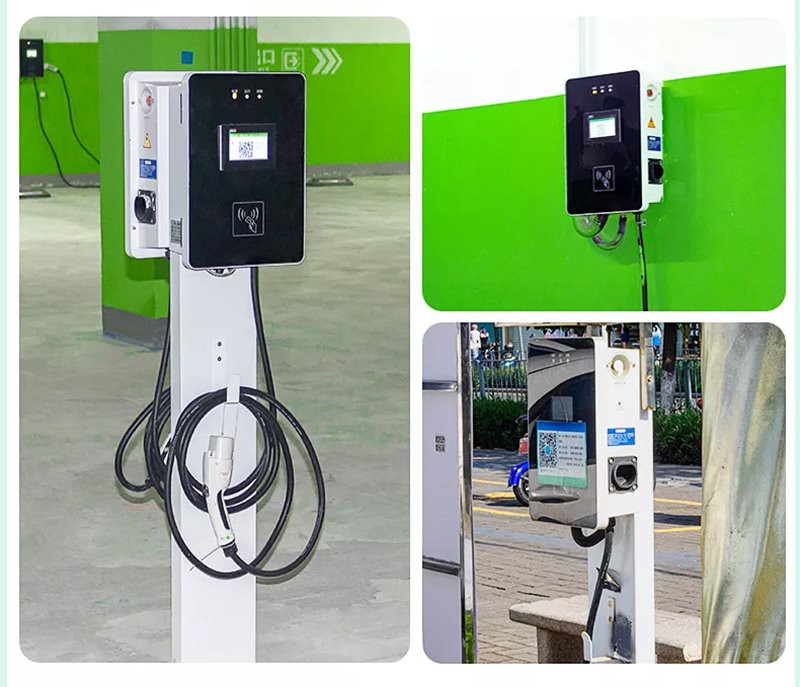

Perfect for these scenarios
Home garage: Install a 7kW wallbox in your garage with a custom adapter. Schedule off-peak charging (0.5 yuan/kWh vs. 1.8 yuan/kWh at public stations). Wake up to a full charge while saving over 200 yuan monthly on electricity.
Multi-family residential complex: A shared 11kW charger in the community parking lot. Residents schedule time slots via app (e.g., 6:00–8:00 PM for household A, 8:00–10:00 PM for household B). No more competing for public stations, while property management earns service fees-benefiting both residents and managers.
Office: A 22kW charger in the company lot (with three-phase power). Employees can fully charge in 2–3 hours during work hours, driving home directly without detours. This boosts employee satisfaction and demonstrates a "green office" commitment.
Our Certificates
Packing and Delivery
With this electric car wallbox charger, charging at home or work is effortless. It adapts to your lifestyle, saves costs, and delivers stable performance. Think of it as your "fixed fast charging companion"-eliminating wasted time searching or waiting for public charging stations.
