Charge Point Electric Car Charger

As electric cars become more popular, the need for reliable and accessible charging stations grows. Charge point electric car charger innovative technology has revolutionized the charging experience for electric car owners.

One of the key advantages of charge point electric car charger is their flexibility. They can be installed in a variety of locations, including parking lots, residential areas, and commercial buildings. This means that electric car owners can easily find a charger that is conveniently located for their needs. Even better, charge point electric car charger can be accessed 24/7, providing round-the-clock charging options for EV drivers.

The charge point electric car charger is a cutting-edge technology that has revolutionized the way we charge our electric cars. It is a smart and efficient charging solution that allows you to charge your electric vehicle quickly and conveniently.

NO	Parameters	Charge Point Electric Car Charger
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	3.5KW	7KW	11KW	22KW
3	Product Model NO.	ENC-ACB/L003P5A ANSI-ACB/L003P5A	ENC-ACB/L007A ANSI-ACB/L007A	ENC-ACB/L011A ANSI-ACB/L011A	ENC-ACB/L022A
4	Mounting	Wall-Mounted/Column Type
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system		Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 55
12	Cooling	Natural Cooling
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%
15	Single Output Max. Current	16 Amp	32 Amp	16 Amp/50 Amp	32 Amp
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.

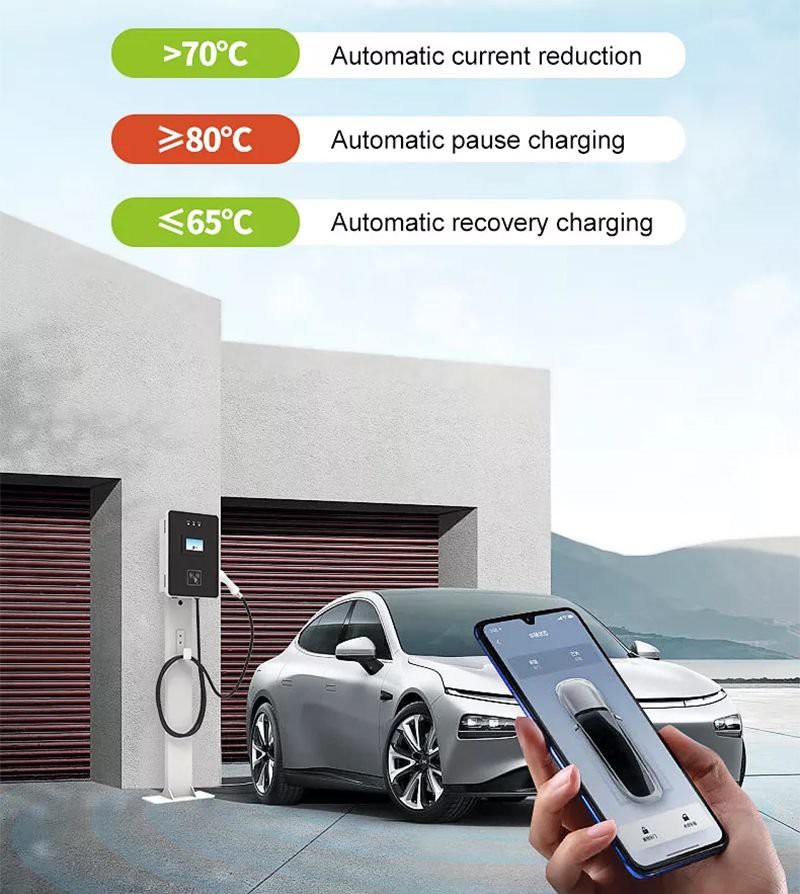

22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

Our charge point electric car charger is a sleek and elegant charging station that complements the design of your garage or parking area. It is available in various models that cater to different needs, including home charging, workplace charging, and public charging. The charger is wall-mounted, has a compact design, and is durable, making it ideal for long-term use.

One of the key features of our charge point electric car charger is its smart capabilities. The charger comes with an app that allows you to easily monitor and manage your charging sessions. Additionally, it is designed to adapt to different power levels and can charge your car up to 6 times faster than a standard home outlet. Moreover, it supports different plug types and comes with a tethered cable or a socket depending on your preference.

Safety is a core feature of our charge point electric car charger. It meets rigorous safety standards, including UL certification and is designed to prevent overheating, overcharging, and any other electrical malfunctions. Furthermore, it is weather-resistant and has a robust design that can withstand harsh environmental conditions.

Our charge point electric car charger is compatible with most electric cars and supports different charging standards, including Level 1, Level 2, and DC Fast Charging. It offers various payment methods, including RFID, credit card, and app-based options, allowing you to choose the most convenient option for you.

Another major benefit of charge point electric car charger is their reliability. These charging stations are equipped with cutting-edge technology that monitors the flow of electricity and helps prevent problems such as overheating or short circuits. This ensures that EV owners can charge their cars quickly and safely, without any worries about potential hazards.

In addition to their practical advantages, charge point electric car chargers are also environmentally friendly. These chargers are designed to use renewable energy sources whenever possible, reducing their carbon footprint and promoting sustainability. By choosing a Charge Point charger, electric car owners can be confident that they are doing their part to help protect the planet.

Our charge point electric car charger can be used in a wide range of scenarios, including home charging, workplace charging, and public charging. At home, it can work as a convenient, fast, and efficient charging solution for your electric car. In the workplace, it can be used as a perk to employees who drive electric cars. Additionally, public charging stations can be installed in different locations like gas stations, malls, or public parking areas to provide fast and efficient charging to electric car owners.

Nanjing JUSWIN New Energy Technology Co.,Ltd is located in Nanjing, Jiangsu Province. We focus on parts and peripheric of new energy vehicles. We design, manufacture and supply a wide range of charge stations and invertors and to customers all over the world.

Our factory get the certification of ISO9001,ISO14001,ISO45001,products has UL,CE,Rohs,,FCC and so on.

All the charge point electric car charger is packed with carton box and poly wooden case to avoid any damages.
