Sae J1772 Charging Station



Worried about charging port compatibility for North American vehicles such as Tesla's North American models or Ford EVs? Want to install a fast charger at home but are unsure about single-phase power? Thinking of adding charging services to residential or light commercial locations but concerned about selecting the right power configuration or installation complexity?



The SAE J1772 Charging Station is designed to solve all these pain points. Fully compliant with the SAE-J1772 North American charging standard, it offers three power options-7kW, 11kW, and 22kW-and features a user-friendly 4.3-inch touchscreen and IP54-rated outdoor protection.



The 7kW and 11kW models connect to a single-phase, three-wire system, while the 22kW version connects to a three-phase, five-wire system. It can be installed in homes, residential areas, and light commercial locations, allowing mainstream North American EVs to enjoy safe, compliant, and convenient fast charging.







NO	Parameters	SAE J1772 Charging Station
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	7KW	11KW		22KW
3	Product Model NO.	ENC-ACL007A ANSI-ACL007A	ENC-ACL011A ANSI-ACL011A		ENC-ACL022A/B ANSI-ACL022B
4	Mounting	Ground-Mounted
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system	Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 54
12	Cooling	Natural Cooling		Air-cooled
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%
15	Single Output Max. Current	32 Amp	16 Amp/50 Amp		32 Amp/16 Amp(ENC) 50 Amp(ANSI)
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.



Easy to Use and Built to Last

4.3-inch Touchscreen

The color touchscreen clearly shows "current power," "charged energy," and "estimated time to full charge." You can start or pause charging with a simple tap, and view charging history or cost summaries. Even first-time users or older adults can operate it easily.



IP54 Protection and Durability

The enclosure is made of UV-resistant engineering material, designed for stable performance under the North American sun, rain, or snow. It withstands small impacts-like parking bumps-ensuring long-term outdoor reliability and minimal maintenance.





Three Power Levels - No Need to Compromise



Different users have different charging requirements. This charging station provides flexible power options to suit every scenario:



7kW Model: Ideal for home garages. Connected to a single-phase 240V power source (standard for North American homes), it delivers roughly 7 kWh per hour and can charge most EVs (around 400 km range) to 80% in 8–10 hours. Perfect for overnight off-peak charging-cutting monthly costs by more than 60% compared to public stations.

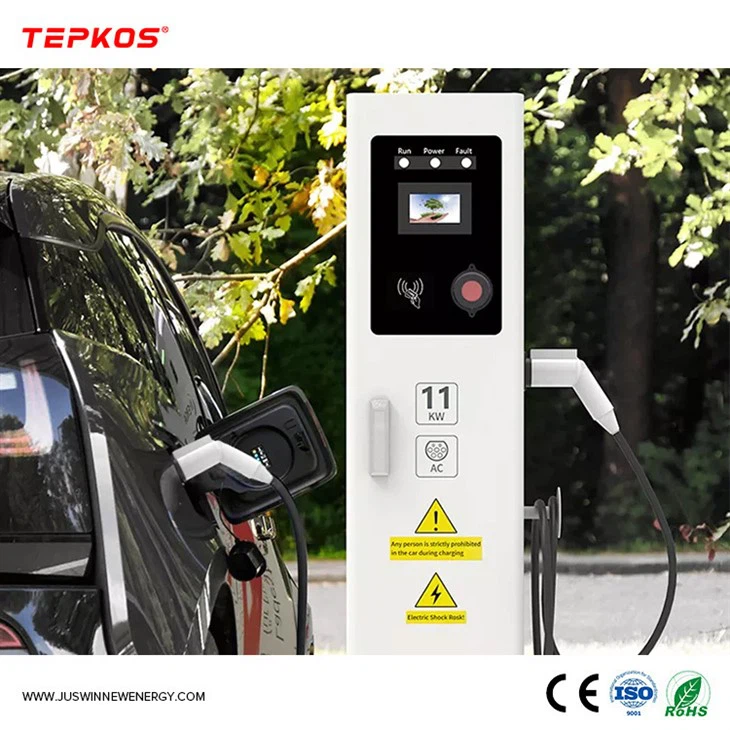

11kW Model: The most popular choice for residential and light commercial use. It also connects to single-phase 240V and provides about 11 kWh per hour, reaching full charge in 5–7 hours. Suitable for multi-resident communities or small shops offering customer charging. One unit can serve 10–15 vehicles per day efficiently.

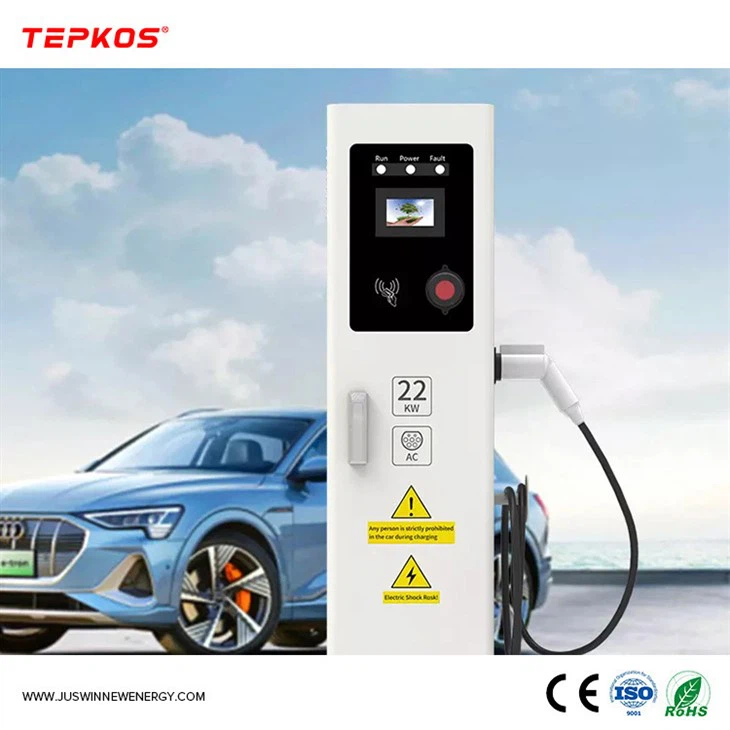

22kW Model: Designed for light commercial use such as mall parking lots or gas stations. Connected to a three-phase 380V power supply, it charges at approximately 22 kWh per hour and fully charges most EVs in 3–4 hours-twice as fast as the 7kW version. Perfect for quick top-ups while shopping or refueling.





Flexible Power Adaptability - No Major Electrical Modifications Needed



Worried about complicated wiring? This charger is engineered for North American power systems:



7kW/11kW models: Connect directly to a single-phase, three-wire 240V/50A circuit, commonly found in home garages. Installation takes about one hour, with no major electrical upgrades required.



22kW model: Connects directly to existing three-phase, five-wire commercial power (260–380Vac). No separate transformer needed. This makes deployment quick and cost-efficient for commercial applications.
