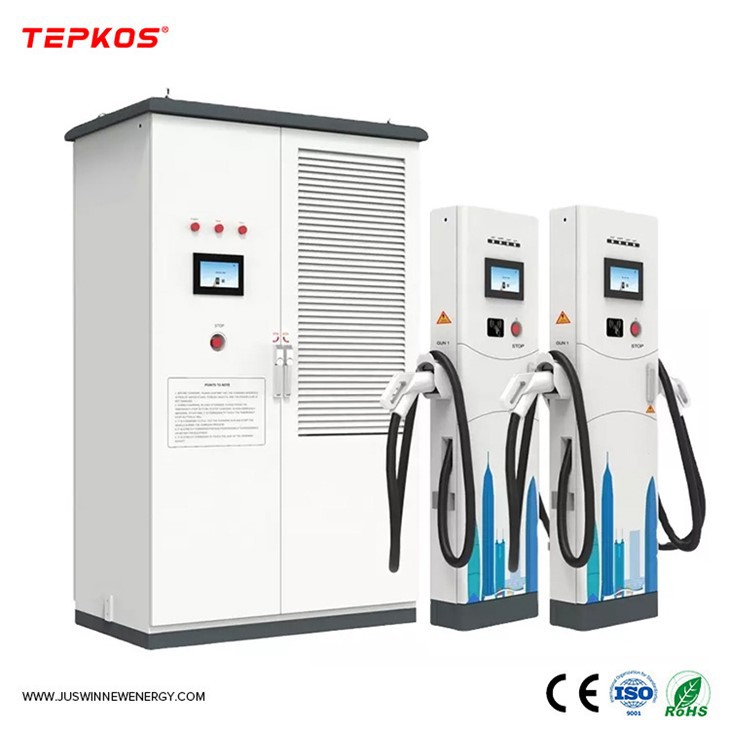

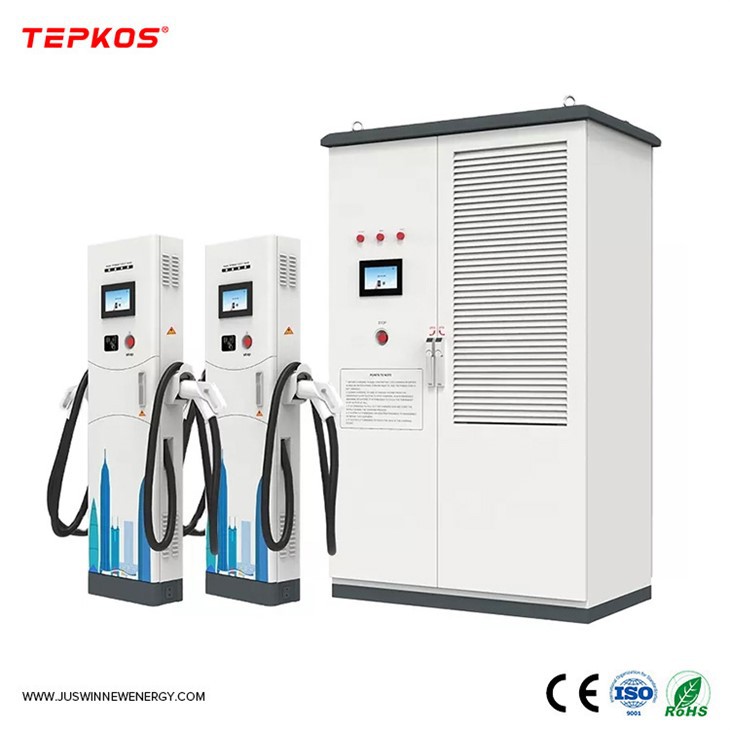

Level 2 Electric Vehicle Charging Station
When parking at shopping malls or office buildings, are you often annoyed by slow charging and long queues? Worried that your electric vehicle will run low on power during trips, disrupting your plans? This level 2 electric vehicle charging station is designed for public areas, featuring 360kW and 480kW high-power output, a customized charging gun, and a 7-inch touchscreen. It lets you quickly recharge in public spaces, saying goodbye to range anxiety.
Product Introduction
What It Is: An "Efficient Fast Charging Station" for Public Areas
This level 2 electric vehicle charging station is a fast-charging device suitable for public scenarios, with multiple power options including 360kW and 480kW. No adapter is needed-we offer customized charging guns based on vehicle brands. Its 7-inch touchscreen is easy to operate, and it can be wall-mounted, column-mounted, or floor-standing. Suitable for both indoor and outdoor use, it seamlessly integrates into parking lots, shopping malls, scenic spots, and other public areas, providing fast, stable charging for electric vehicles.
Product Parameters
|
NO |
Parameters |
level 2 electric vehicle charging station |
||
|
1 |
EV Charger Type |
DC |
||
|
2 |
Charger Capacity |
360KW |
480KW |
|
|
3 |
Product Model NO. |
ENC-DCF360F |
ENC-DCF480H |
|
|
4 |
Mounting |
Ground-Mounted(Sequential) |
||
|
5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
||
|
6 |
Nominal Input Voltage |
AC380V±15% |
||
|
7 |
Input Frequency |
45-65Hz |
||
|
8 |
Ambient Temperature |
-25 to 55°C |
||
|
9 |
Ambient Humidity |
5 to 95% |
||
|
10 |
Storage Temperature |
-40 to 70°C |
||
|
11 |
Current Limit Protection Value |
≥110% |
||
|
12 |
Steady pressure precision |
≤±0.5% |
||
|
13 |
Steady flow accuracy |
≤±1% |
||
|
14 |
Power Factor |
≥0.99(50% load above) |
||
|
15 |
IP Ratings |
IP 54 |
||
|
16 |
Cooling |
Air-cooled |
||
|
17 |
Connector Terminal |
3 |
4 |
|
|
18 |
Number of Outputs |
6 |
8 |
|
|
19 |
Type of Each Output |
DC200-750V; DC150-500V(JIS) |
||
|
20 |
Single Output Max. Current |
200 Amp |
||
|
21 |
Display & Touch-Screen |
7 Inches Touch Screen with Shell |
||
|
22 |
User Authentication |
Mobile Application or User Interface / QR Code/RFID Card /Password Login |
||
|
23 |
Metering Information |
Consumption Units |
||
|
24 |
Communication between EVSE and Central Server |
OCPP 1.6J Protocol (Optional) |
||
|
25 |
Interface between Charger and CMS |
Ethernet/3G/4G/WIFI (Optional) |
||
|
26 |
Executive Standard |
IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc. |
||
Meeting Your Core Public Charging Needs
High-Power Fast Charging: Significantly Reduces Waiting Time
As a level 2 electric vehicle charging station, its core strength lies in fast charging:
360kW model: Ideal for offices and shopping malls. Most electric vehicles can recharge over 200 kilometers of range in 15–20 minutes, enough to fully charge during a shopping trip or meeting.
480kW model: Perfect for highway service areas and tourist attractions. A 10-minute charge adds about 300 kilometers of range, enabling quick energy replenishment during long trips without delaying your journey.
7-Inch Touchscreen: Easy to Operate
Concerned about complicated operation? The level 2 electric vehicle charging station's 7-inch touchscreen clearly displays charging power, charged range, and estimated completion time. Starting charging, checking fees, and pausing operations only require a touch. Its simple interface lets even seniors master it quickly, no staff assistance needed.
Customized Charging Guns: Compatible with All Vehicle Models
No more worrying about interface mismatches-this level 2 electric vehicle charging station supports customized charging guns based on vehicle models. Each gun is precisely molded using vehicle interface data and undergoes 1,000 plug-in tests to ensure a tight fit, stable conductivity, and no overheating during charging. Whether you drive a Tesla, BYD, or another brand, simply plug in and charge-solving the "vehicle compatibility" issue once and for all.
Comprehensive Safety Features: Reliable 24/7 Operation
Safety is critical for public charging. This level 2 electric vehicle charging station meets international safety standards, with the following protections:
Grounding protection: Prevents electric shock and ensures personal safety.
Overcurrent and short-circuit protection: Stops abnormal currents from damaging vehicle batteries or equipment.
Surge protection: Handles sudden voltage fluctuations without disrupting stable operation.
IP54 rating: Dustproof and waterproof, functioning normally in rain, snow, high temperatures, and other extreme weather-ideal for long-term outdoor use.
Product Dimension
Ideal for These Scenarios
Office Spaces: Charge While Working, Return Home Fully Charged
Install the level 2 electric vehicle charging station in office parking lots. Employees park, plug in the charging gun, confirm settings on the 7-inch screen, and head to work. The 360kW model can fast-charge multiple vehicles during an 8-hour workday. By the end of the workday, vehicles are fully charged-no need to detour for charging piles, saving commuting time.
Shopping Malls: Recharge While Shopping, No Trip Delays
When shopping, park near the charging station, connect your vehicle with a customized gun, and set the charging amount via the touchscreen. The 480kW model, after 30 minutes of charging, provides enough range for your return trip-finishing just as you finish shopping, with no delays to picking up kids, dates, or other plans.
Tourist Attractions: Recharge at Scenic Spots, Travel Worry-Free
Install level 2 electric vehicle charging stations in national parks, ancient towns, and other attractions. Tourists park, start fast charging-the 360kW model, with 15 minutes of charging, provides enough range for the entire visit. The 7-inch screen shows real-time progress, so you won't worry about overpayment, letting you fully enjoy your trip.
Our Certificates
Portable EVSE Charger: Charging New Energy Vehicles No Longer Limited to Fixed Stations
With this level 2 electric vehicle charging station, public area charging is no longer a hassle. It understands your need for efficiency and convenience, using high-power fast charging, flexible compatibility, and reliable safety to become your trusted helper for energy replenishment during travel.
