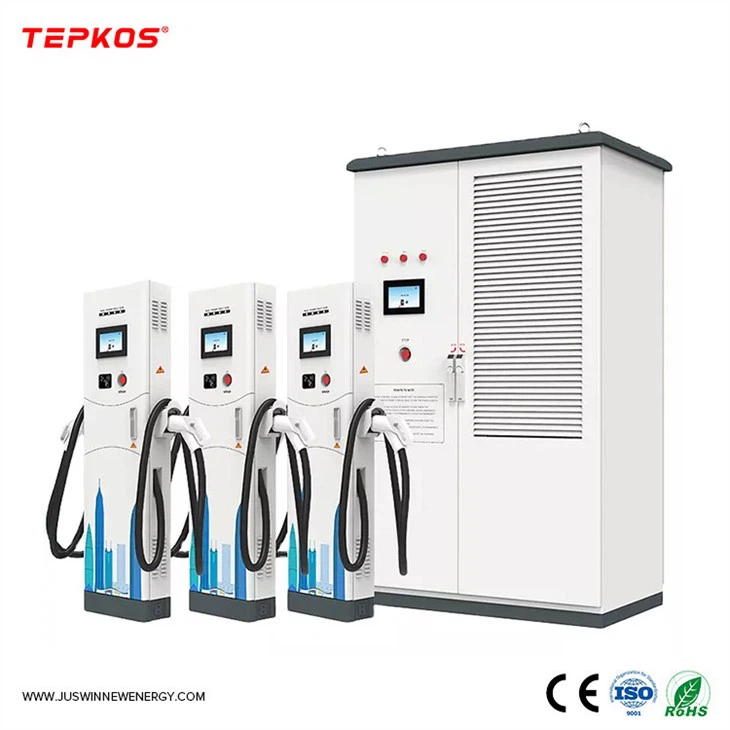

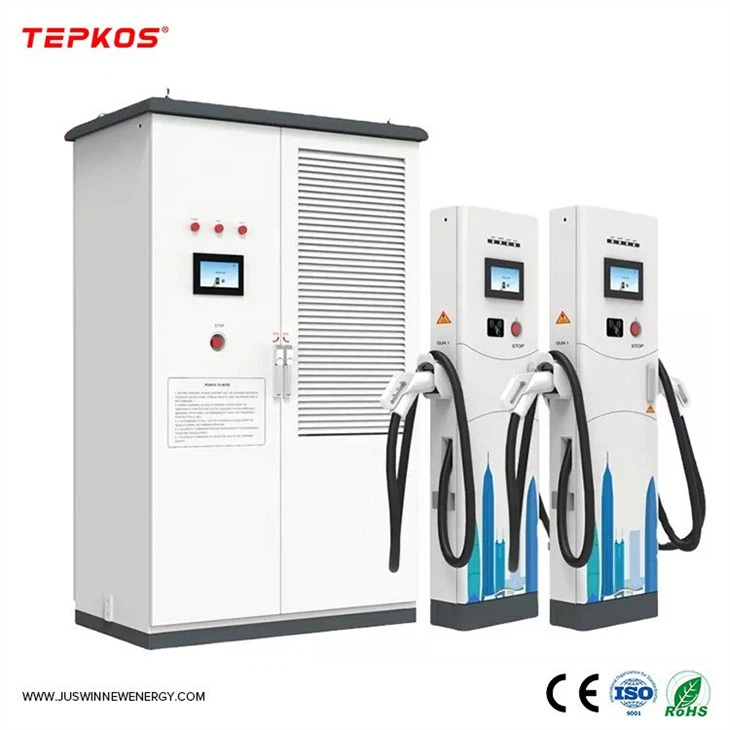

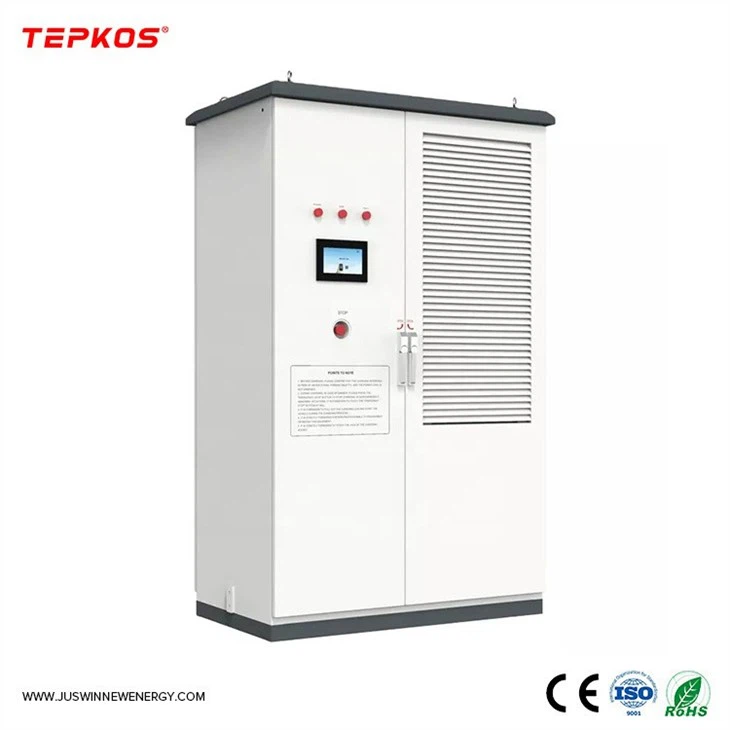

Fast Charging For Ev Cars
The fast-charging device for electric cars is a modern solution that meets the needs of electric car owners. It is easy to use, reliable, and efficient. It comes with many features that provide a pleasant experience for the user. The device meets all the safety standards and regulations, and it can be installed in many application scenarios. The fast-charging device is a perfect solution for electric car owners who want to recharge their cars in a quick time.
Product Introduction
Product Instruction
As an electric car driver, you're likely tired of long charging waits. Our fast - charging device is crafted to revolutionize your charging experience. It's not just a charger; it's a time - saver that aligns with your busy lifestyle.
Product Parameters
|
NO |
Parameters |
Fast Charging for EV Cars |
|
General Requirements |
||
|
1 |
EV Charger Type |
DC |
|
2 |
Charger Capacity |
240KW |
|
3 |
Product Model NO. |
ENC-DCF240D;ANSI-DCF240D;JIS-DCF240D |
|
4 |
Mounting |
Ground-Mounted(Sequential) |
|
Input Requirements |
||
|
5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
|
6 |
Nominal Input Voltage |
AC380V±15% |
|
7 |
Input Frequency |
45-65Hz |
|
Environmental Requirements |
||
|
8 |
Ambient Temperature |
-25 to 55°C |
|
9 |
Ambient Humidity |
5 to 95% |
|
10 |
Storage Temperature |
-40 to 70°C |
|
Electrical indicators |
||
|
11 |
Current Limit Protection Value |
≥110% |
|
12 |
Steady pressure precision |
≤±0.5% |
|
13 |
Steady flow accuracy |
≤±1% |
|
14 |
Power Factor |
≥0.99(50% load above) |
|
Mechanical Requirements |
||
|
15 |
IP Ratings |
IP 54 |
|
16 |
Cooling |
Air-cooled |
|
Output Requirements |
||
|
17 |
Connector Terminal |
2 |
|
18 |
Number of Outputs |
4 |
|
19 |
Type of Each Output |
DC200-750V; DC150-500V(JIS) |
|
20 |
Single Output Max. Current |
200 Amp |
|
User Interface & Display Requirements |
||
|
21 |
Display & Touch-Screen |
7 InchesTouch Screen |
|
22 |
User Authentication |
Mobile Application or User Interface / QR Code/RFID Card /Password Login |
|
23 |
Metering Information |
Consumption Units |
|
Communication Requirements |
||
|
24 |
Communication between EVSE and Central Server |
OCPP 1.6J Protocol (Optional) |
|
25 |
Interface between Charger and CMS |
Ethernet/3G/4G/WIFI (Optional) |
|
Protection & Safety Requirements |
||
|
26 |
Executive Standard |
IEC 62196 2017, IEC 61851 2017, SAE J1772,CHAdeMO etc. |
|
27 |
Safety Parameters |
Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. |
User - Centric Design Features
Simplicity is key. Our device is designed for hassle - free operation. Even if you're new to electric car charging, you'll find the process straightforward. The touch - screen display is intuitive, guiding you through each step of the charging process. It shows real - time data like the charging rate, how much longer until full charge, and any relevant notifications. Plus, our overcharging prevention feature safeguards your car battery, extending its lifespan.
Blazing - Fast Charging Capabilities
We've engineered this stationary device to recharge your car battery in a fraction of the time traditional chargers take. Whether you're at a bustling gas station, a busy shopping mall, or a crowded parking lot, our fast - charger can be installed there, tapping into the electric grid to deliver power directly to your car's battery. Using advanced charging algorithms, we ensure a rapid yet stable charge transfer.
Safety First, Always
Safety is non - negotiable for us. We use top - notch materials in manufacturing this device. It complies with all international safety standards and regulations, having been thoroughly tested and certified by recognized authorities. You can charge your car with complete peace of mind, knowing that both you and your vehicle are protected.

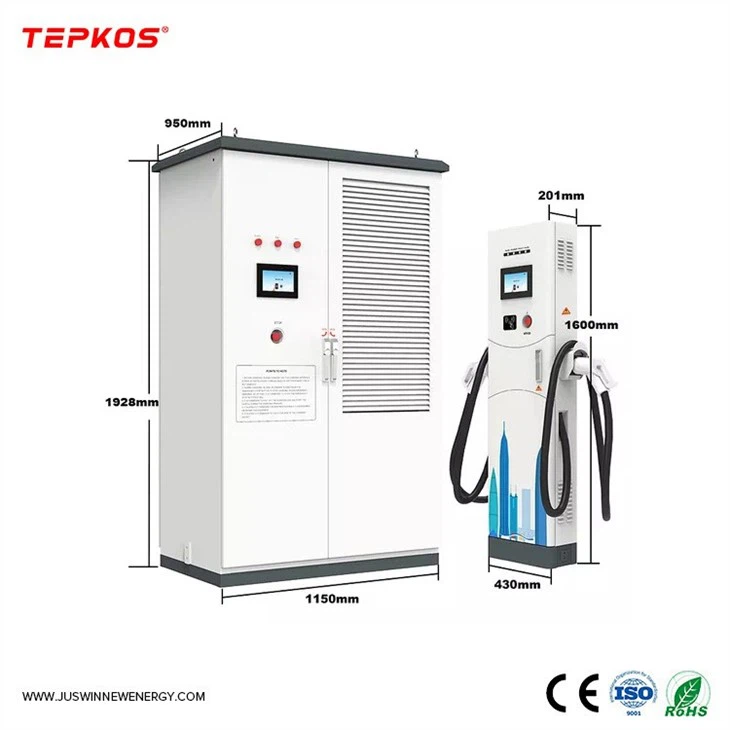

Product Dimension
Customer Photos
Whether you need a charging solution for public use, our fast - charging device fits the bill. In public spaces, it can serve as a convenient pit - stop for EV drivers. It's a flexible and practical solution for all your EV charging needs.
