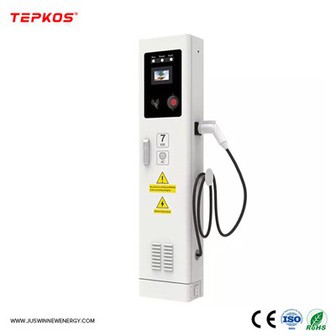

Electric Vehicle Charging Pile

Electric vehicle charging piles, also known as electric vehicle charging stations, are a necessary infrastructure for electric vehicles to charge. It is mainly composed of charging equipment, communication equipment, and electric energy measurement equipment. Charging piles are divided into several types, namely alternating current (AC) charging pile, direct current (DC) charging pile, and portable ev charger.

Electric vehicles (EVs) and hybrid electric vehicles (HEVs) are gaining popularity as eco-friendly and cost-effective alternatives to traditional gasoline-powered vehicles. The popularity of these vehicles has led to a growing demand for electric vehicle charging piles, also known as EV charging stations, which provide a convenient and reliable way to charge EVs and HEVs. EV charging stations charge the battery of an electric vehicle using electricity from a conventional power source.

NO	Parameters	Electric Vehicle Charging Pile
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	7KW	11KW		22KW
3	Product Model NO.	ENC-ACL007A ANSI-ACL007A	ENC-ACL011A ANSI-ACL011A		ENC-ACL022A/B ANSI-ACL022B
4	Mounting	Ground-Mounted
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system	Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 54
12	Cooling	Natural Cooling		Air-cooled
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%
15	Single Output Max. Current	32 Amp	16 Amp/50 Amp		32 Amp/16 Amp(ENC) 50 Amp(ANSI)
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

Our electric vehicle charging pile is a device that provides a modern and efficient method of charging electric and hybrid electric vehicles. It typically consists of an electrical socket, a power supply unit, and a communication interface with payment methods to allow users to pay for the electricity used. The charging pile can either be mounted on the wall or free-standing.

1. Fast Charging: Our electric vehicle charging piles offer a faster charging rate than standard wall outlets, with some models capable of charging a vehicle up to 80% in just 30 minutes.

2. Compatibility: The charging pile is compatible with virtually all electric and hybrid electric vehicles, including those using different charging connectors such as CHAdeMO, CCS, and Type 2.

3. Scalability: Charging piles can be scaled up or down depending on the number of charging stations required.

4. Smart Charging: Our electric vehicle charging piles come with an intelligent charging system that uses artificial intelligence and machine learning algorithms to optimize the charging process for maximum efficiency.

5. Security: Our electric vehicle charging piles come with advanced security features to safeguard against unauthorized access and prevent charging errors.

Our electric vehicle charging piles come with a range of safety standards that ensure safe and reliable charging and prevent any accidents or hazards. These safety standards may include provisions for grounding and insulation, fire resistance, protection against overvoltage and overcurrent, and protection against short circuits.

Our electric vehicle charging piles typically allow users to charge their vehicles using a variety of payment methods, including:

1. Prepaid cards; 2. Mobile apps; 3. Credit cards; 4. Debit cards.

Our electric vehicle charging piles may be installed in a variety of locations, such as:

1. Parking lots; 2. Highways and motorways

3. Service stations; 4. Private garages

5. Commercial buildings; 6. Residential areas

7. Public transportation stations; 8. Tourist attractions

All the electric vehicle charging piles are packed with carton box and poly wooden case to avoid any damages.



Why choose us?

• With years of experience in the industry, our Chinese factory knows how to deliver top-quality EV charging stations.
• It truly is our responsibility to fulfill your requirements and successfully provide you.
• As a Chinese manufacturer of EV charging stations, we remain committed to quality and customer satisfaction.
• In the great journey of the new era, we will continue to be guided by socialism with special characteristics.
• Choose our Chinese factory for exceptional quality, reliability and affordability in your next EV charging station purchase.
• Our vision is to continue to innovate and provide core competitive advantages of our Electric Vehicle Charging Pile to help our customers succeed.
• We offer fast shipping and competitive pricing on all of our EV charging station products.
• Our excellent Electric Vehicle Charging Pile and good services have been widely praised by users, and achieved both economic and social benefits.
• When it comes to reliable EV charging station products, our Chinese factory is the clear choice.
• Any product has its market space and sales mode. Our continuous and stable profit source is realized through technological innovation and new sales strategy.
