Dc Fast Charging Station For Electric Vehicles
Product Introduction
Products Description

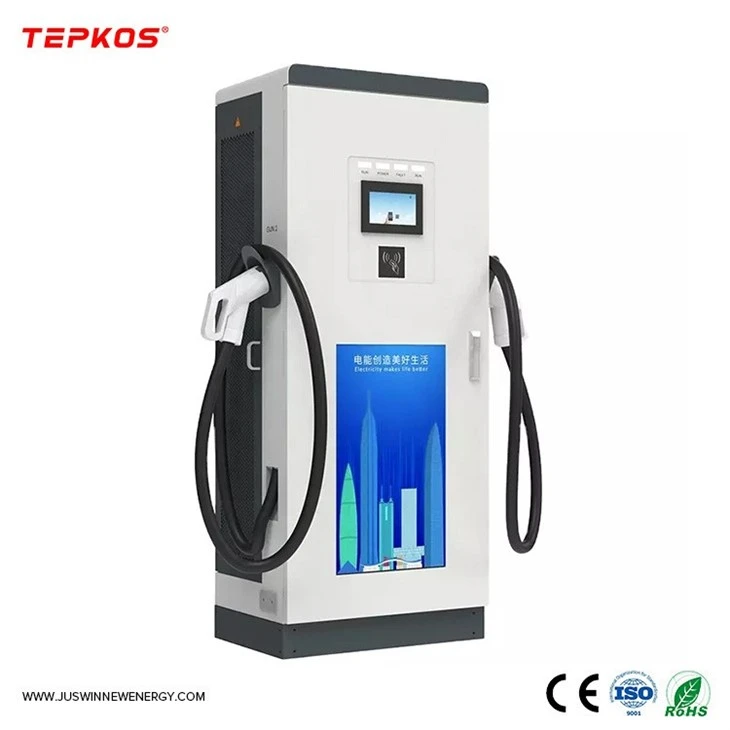

Our dc fast charging station is designed specifically for rapid charging of battery-powered cars, trucks, buses, and other electric vehicles (EV). This ev charging unit significantly reduces wait times during long journeys by delivering direct current directly to the batteries, resulting in shorter overall charging periods.
Product Parameters
| Name | Dc Fast Charging Station For Electric Vehicles |
| Power | 30-120KW |
| Connector | ONE/TWO (CCS-1/CCS-2/CHAdeMO/GBT) |
| Input voltage range | 380V±15% (3-Phase) |
| Output voltage range | 200-750Vdc |
| Output current range | 0-200A/single connector |
| Communication | Ethernet/3G/4G/WIFI (Optional) |
| Display | 7 inch touch screen |
| Support | OCPP1.6 |
| IP rating | IP54 |
| Working Temp. | -25-55℃Installation |
Product Details
High output power rating of up to 120 kW
Dynamic load balancing between multiple connected vehicles
Intelligent thermal management system maintains safe operating temperatures
User-friendly touchscreen display with real-time energy consumption monitoring
Supports all common connector types including CCS, CHAdeMO, Tesla Supercharger, etc.
Product feature
Our DC fast charging station offers several features that make it a preferred charging solution for electric vehicle owners. Firstly, it provides a 120kw fast charge rate, which can charge a vehicle up to 80% in just 30 minutes. Secondly, it comes with a customizable charging gun head, which can be used with different types of electric vehicles. Finally, this station is equipped with 4.3-inch LCD display that provides information on the charging status, time remaining, and charging rate.
Safety Features
Adherence to global safety regulations such as UL 2231-1, CE Mark Certified, IP54 waterproof rating, and RoHS compliance ensure maximum reliability under various environmental conditions. Internal circuit breakers protect against electrical faults while an emergency stop button provides immediate response in case of any unexpected incidents.
Customer Photos
Our DC fast charging stations are suitable for commercial use cases such as gas stations, shopping malls, airports, parking lots, and more. Also ideal for fleet operators looking to optimize charging efficiency within depots.
Our dedication to technological advancement and customer satisfaction drives us forward in creating products that empower the future of transportation. By offering reliable and efficient charging solutions.
