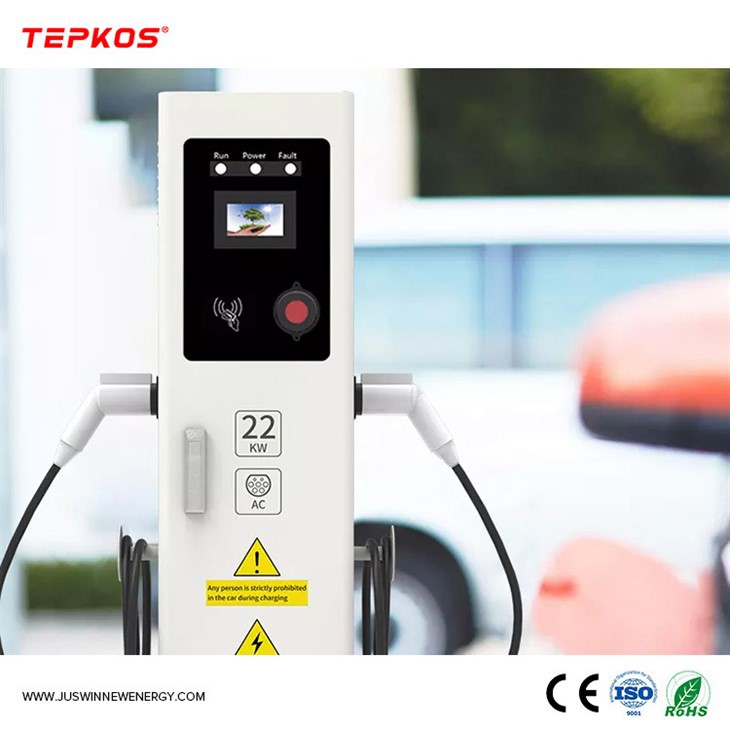

240 Volt Charging Station

It is believed that many EV car owners will often worry about the problem of charging. Although there are many public ev charging stations outside, because most of the public charging piles are charged by time, it is often difficult to find a parking space during the preferential time period.

In addition, most public charging piles use DC charging technology (fast charging), and long-term fast charging can easily lead to shortened battery life. If you find it and find that you have to queue or it is damaged and cannot be used, it will also greatly reduce the ease of daily travel.

Therefore, it is very happy to have an private ev charging station.

NO	Parameters	240 Volt Charging Station
General Requirements
1	EV Charger Type	AC
2	Charger Capacity	7KW	11KW		22KW
3	Product Model NO.	ENC-ACL007A ANSI-ACL007A	ENC-ACL011A ANSI-ACL011A		ENC-ACL022A/B ANSI-ACL022B
4	Mounting	Ground-Mounted
Input Requirements
5	AC Supply System	Single-Phase, 3 Wire AC system	Single-Phase, 3 Wire AC system(ANSI) Three-Phase, 5 Wire AC system(ENC)
6	Nominal Input Voltage	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%(ENC) AC240V±15%(ANSI)
7	Input Frequency	50±3Hz
Environmental Requirements
8	Ambient Temperature Range	-25 to 55°C
9	Ambient Humidity	5 to 95%
10	Storage Temperature	-40 to 70°C
Mechanical Requirements
11	IP Ratings	IP 54
12	Cooling	Natural Cooling		Air-cooled
Output Requirements
13	Number of Outputs	1
14	Type of Each Output	AC220V±15%(ENC) AC240V±15%(ANSI)	AC380V±15%(ENC) AC240V±15%(ANSI)		AC380V±15%
15	Single Output Max. Current	32 Amp	16 Amp/50 Amp		32 Amp/16 Amp(ENC) 50 Amp(ANSI)
User Interface & Display Requirements
16	Display & Touch-Screen Size	4.3 InchesTouch Screen
17	User Authentication	Mobile Application or User Interface / QR Code/RFID Card /Password Login
18	Metering Information	Consumption Units
Communication Requirements
19	Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
20	Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Protection & Safety Requirements
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, etc.
22	Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc.

The 240 volt charging station is a high-quality charging station designed to provide a fast and efficient charging solution for your electric vehicle. This product comes with a range of features that make it convenient and easy to use, and it can be installed in a variety of locations to suit your individual needs.

Our 240 volt charging station is made from high-quality materials and is built to last. The station is equipped with a variety of features to make charging your vehicle simple and easy, including a robust charging cable, a weather-resistant housing, and an easy-to-use control panel.

One of the key features of the 240 volt charging station is its high charging capacity. This station can deliver up to 240 volts of power, which means that it can provide fast and efficient charging for your vehicle. This makes it an ideal choice for those who need to charge their electric vehicle quickly and efficiently.

Our 240 volt charging station comes with a range of features that make it convenient and easy to use. These features include:

- High charging capacity: The station delivers up to 240 volts of power, making it an ideal choice for those who need to charge their vehicle quickly and efficiently.

- Weather-resistant housing: The station is designed to withstand a range of weather conditions, including rain, snow, and extreme temperatures.

- Easy-to-use control panel: The station comes with an intuitive control panel that makes it easy to start and stop charging, as well as monitor the progress of your charging session.

- Robust charging cable: The charging cable is designed to withstand heavy use, and is resistant to damage and wear and tear.

Our 240 volt charging station is designed to meet all relevant safety standards, including UL and CSA certification. This ensures that the station is safe to use and that it complies with all relevant regulations.

Our 240 volt charging station supports a range of charging and payment methods, including:

- Credit card payments: Users can pay for their charging session using a credit card, which is processed securely and efficiently.

- Membership payments: Users can become members of the charging network and enjoy preferential rates and other benefits.

Our 240 volt charging station can be installed in a wide range of locations, including:

- Residential properties: The station can be installed in a garage or driveway to provide convenient charging for electric vehicle owners.

- Commercial properties: The station can be installed in a range of commercial locations, including office buildings, shopping centers, and parking garages.

- Public spaces: The station can be installed in public spaces such as parks and recreation centers to provide charging for electric vehicles.

All the 240 volt charging station are packed with carton box and poly wooden case to avoid any damages.
